Sanitary Sewer Flow Meter: Open Channel Urban Wastewater Level Trackers
Quick Answer: Open channel flow meters in sanitary sewers track wastewater level and velocity without full pipe conditions. Silver Instruments offers ultrasonic level trackers with 4-20 mA HART and RS485 outputs that fit standard flumes and weirs. Share your maximum flow rate, channel width, and ambient conditions to get a sensor recommendation from our engineers.
Why Cities Choose Non-Contact Level Trackers
Urban wastewater networks rarely run full. Gravity pipes and large interceptor channels operate as open channels most of the time. Measuring flow here needs a different approach than a pressurized mag meter on a discharge line. The standard method combines a primary hydraulic structure with a secondary level sensor. The structure can be a Parshall flume, a V-notch weir, or a rectangular weir installed inside the sewer manhole or open channel. The level sensor sits above the water and sends a signal proportional to the liquid height. A flow transmitter then calculates the flow rate based on the head-versus-flow formula stored in its firmware.
Sensor Technologies for Sanitary Sewer Applications
We have seen many sites where a simple float switch or bubbler system fails after six months. The sewer atmosphere is humid, often corrosive, and carries mist that coats every surface. Non-contact methods survive much longer. Ultrasonic sensors are the first choice for most of our municipal clients. Our standard OCF series ultrasonic level tracker fires a 50 kHz sound pulse at the water surface and measures the echo return time. It compensates for temperature shifts with an integrated PT100 element. For channels with foam, fat, or floating debris, we often recommend a 26 GHz radar level transmitter. Radar ignores surface foam and thin oil layers that confuse ultrasonic sensors. In a recent project for a drainage authority in Malaysia, we replaced six ultrasonic units with radar trackers on a trunk sewer line where a food processing plant upstream discharged greasy wastewater every afternoon. The level reading jumped less than 1 mm after the change.
How a Typical Measurement Loop Works

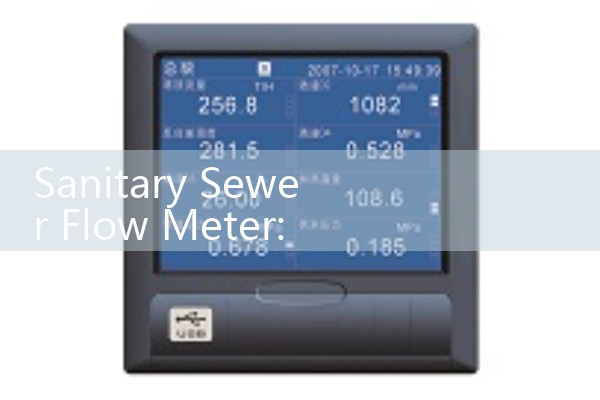

In practice, the level tracker sits inside a stilling well or mounts directly above the flume approach channel. The sensor body is PVDF or 316L stainless with an IP68 rating. The electronics head provides a 4-20 mA HART signal that connects to a local flow computer or a SCADA remote terminal unit. Many plants pair our level trackers with a paperless recorder from the Silver Instruments R Series. The recorder logs flow, totalized volume, and level data on a 32 GB secure digital card. Engineers export data later for EPA or local environmental compliance reports. We also offer a Modbus RS485 option so you can integrate directly with Siemens, Allen-Bradley, or Schneider PLCs without extra signal converters.
Site Calibration and Accuracy Details
Most engineers skip this part, but the factory default curve is just a starting point. Sanitary sewer flows often carry solids, and the channel dimensions may shift after years of sediment buildup. We send a setup checklist with every unit. You need to measure the actual throat width of the flume, confirm the zero offset from the sensor face to the channel floor, and run a dry verification with a known target. A
_600x400.jpg)
Typical Request for Quotation Details We Need
Send us your maximum and minimum flow rate in cubic meters per hour. Give us the channel type and width, the flume or weir style if one exists, and the maximum water level you expect during peak rain events. Tell us the ambient temperature range, humidity, and whether the site is classified as ATEX Zone 1 or Zone 2. Most sewer lift stations do not require explosion-proof ratings, but enclosed wet wells with methane buildup often do. We can ship an ATEX-certified radar sensor in two weeks. Contact us at [email protected], call +86-135-1213-1526, or message us via WhatsApp at 86-135-12131526. You can also reach our engineers on WeChat at +86 13512131526 for a quick drawing review.
FAQ: Sanitary Sewer Open Channel Flow Measurement
Can I use a full-bore magnetic flow meter in a partially filled sewer pipe?
No. A standard mag meter needs a full pipe to maintain accuracy. If the pipe runs only 30 percent full, the electrodes lose contact with the water. For partially filled lines we recommend an open channel flume section with a non-contact level tracker. There are specialized insertion mag meters designed for partially filled pipes, but installation cost and site complexity are usually higher.
How often should I clean the ultrasonic sensor face?
Cleaning frequency depends on the sewer atmosphere. In a gravity interceptor with high humidity and mist, we suggest checking every four weeks. A buildup of condensation or slime dampens the acoustic signal. The OCF sensor can trigger a low echo confidence alarm via HART. If you see that alarm, schedule a wipe-down. Radar sensors rarely need cleaning, but a thick spider web across the horn can cause false echoes.
What output signals does your level tracker support?
Standard output is 4-20 mA with HART superimposed. You can get Modbus RTU over RS485 as a factory option. Both outputs can transmit flow rate and totalized volume when paired with a compatible flow computer. We also offer a complete panel with a paperless recorder and a cellular modem for remote SMS alarms.
Can the same tracker measure level in a stormwater bypass channel?
Yes, provided you define the channel geometry and the secondary flow equation in the transmitter software. Many clients use one OCF tracker on the dry weather flume and a second unit on the storm overflow weir. The recorder then calculates combined flow for the discharge permit report.
What is the typical delivery time for a non-ATEX ultrasonic sewer flow meter?
We keep standard 0 to 8 meter and 0 to 15 meter ultrasonic sensors in stock at our Nanjing warehouse. Delivery to Southeast Asia, the Middle East, and Oceania usually takes 5 to 7 working days by express courier. Custom cable lengths, ATEX certification, or radar versions take an extra 10 working days. To check stock and get a firm shipping date, send your specifications to [email protected].
