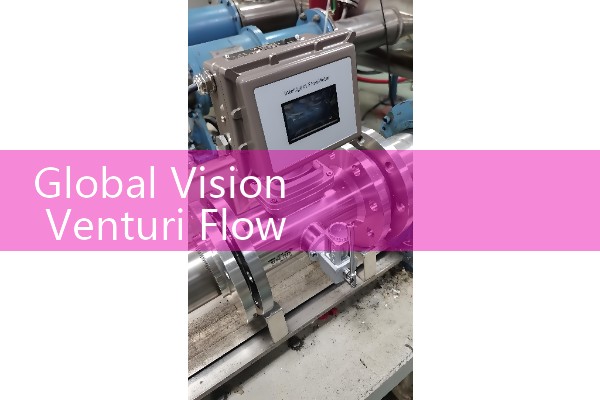

Global Vision Venturi Flow Meter Troubleshooting: Fixing Low Differential Pressure Signal Output Errors
Quick Answer: Low DP signal output on a Global Vision Venturi flow meter usually comes from blocked impulse lines, an open equalizing valve, or a transmitter span that is much wider than the actual DP range. Check the three way manifold first. Then compare the transmitter LRV and URV with the Silver Automation Instruments sizing sheet.
Low differential pressure output is a common field problem in water, steam, gas, and chemical service. Here is the thing. A Venturi flow meter converts flow into a small pressure drop at the throat. The DP transmitter reads this pressure drop and sends a 4 to 20 mA HART signal. If the signal sits near 4 mA or moves only a few tenths of a milliamp when flow changes, the control system sees a low DP signal error.
We have seen this on customer sites many times. A water treatment plant in the Philippines had a closed high side block valve. A palm oil mill in Malaysia had impulse lines filled with wax and sand. Both cases produced the same low DP signal error even though the Venturi primary element was clean.
1. Field Checks for a Low DP Signal on a Global Vision Venturi Meter
Start at the three way manifold. Close the equalizing valve first. Open both root valves. Then close the low side root valve. The DP reading should move when process pressure changes. If it does not, the high side impulse line or tapping point is blocked. Reverse the test for the low side. Most engineers skip this part because the manifold looks normal from the control room.
Inspect the impulse lines. For liquid service, drain them and check for solids. For steam service, check that the condensate pots are filled to equal levels. For gas service, check for liquid buildup at the low point. A small pinhole leak in an impulse tube can also drop the DP signal below the expected span.
Check the root valves. The high side and low side root valves must be fully open. A half open root valve acts like an orifice. It dampens the DP signal and delays the response. Close and open each valve fully to make sure it is not broken inside the body.
Verify the transmitter zero. Close both root valves. Open the equalizing valve. The DP transmitter should read 0 mbar. Use a HART communicator to perform a zero trim. Do not use the zero button on an older analog transmitter without checking the manifold first.
2. Transmitter Span and Square Root Settings
A wrong span is the most common software cause of low DP signal. For example, a DN100 Global Vision Venturi on chilled water may produce a maximum DP of 240 mbar at 80 m3/h. If the transmitter span is set to 0 to 2000 mbar, the normal DP of 240 mbar is only 12 percent of span. At typical flow of 40 m3/h, the DP is about 60 mbar. The output current is only 4.48 mA. The signal looks low even though the Venturi element is working correctly.
Compare the transmitter LRV and URV with the Venturi sizing sheet. The LRV should be 0. The URV should be close to the maximum DP at the design flow rate. Use the same engineering unit. mbar and kPa mix ups are common in Southeast Asia and Middle East sites.
Check the transfer function. A Venturi flow output is not linear. The DP signal follows a square root relationship. Set the transmitter to square root output only if the PLC or flow computer does not perform the square root extraction. If both the transmitter and the PLC are doing square root extraction, the output will read even lower at reduced flow rates.
3. Process Condition Checks
Low DP signal can also come from the process side. C
Check the process pressure and temperature. A steam system running below its design pressure changes the density. A gas flow running at lower pressure than the sizing basis reduces the DP signal. For example, a compressed air line sized at 7 bar but running at 4 bar will produce a lower DP at the same actual volume flow.
Inspect the Venturi throat for coating or erosion. A chemical plant in Saudi Arabia found a polymer coating on the throat of a DN50 meter. The coating reduced the DP signal and shifted the flow reading down by 18 percent. Cleaning the throat restored the signal.
4. Global Vision Venturi Specific Notes
Global Vision Venturi meters are often supplied with a DP transmitter from Silver Automation Instruments. The primary element may be a machined or welded Venturi with DN15 to DN600 sizes. Typical outputs are 4 to 20 mA HART with ranges from 0 to 25 mbar up to 0 to 20 bar depending on the line size and flow range.
For low pressure gas or flare gas applications, a 0 to 25 mbar DP cell can be sensitive to installation level. Mount the transmitter above the tapping for gas service. Mount it below the tapping for liquid service. The wrong orientation fills the sensing lines with liquid or gas and creates a false low signal.
Check the loop resistance. A DP transmitter needs a minimum voltage at the terminals. If the loop total resistance is too high, the transmitter cannot drive 20 mA. At high flows the signal may cap at 18 mA. At low flows it reads low. Use a multimeter to measure the supply voltage and loop resistance.
FAQ: Global Vision Venturi Low DP Signal Troubleshooting
Q1: Why does my Venturi DP transmitter stay at 4 mA even when flow is visible?
Check the three way manifold equalizing valve. If it is open, the transmitter sees equal pressure on both sides and outputs 4 mA. Close the equalizing valve and open both root valves.
Q2: The DP signal changes but the flow reading is too low. What should I check?
Check the square root setting and the transmitter URV. A URV that is too high compresses the DP signal. A missing square root function at the PLC will show low flow at reduced rates.
Q3: Why does a steam Venturi meter show low DP after startup?
Check the condensate pots. Unequal condensate levels create a false DP offset. Refill both pots and vent the impulse lines. Also check that steam traps on the impulse lines are not blocked.
Q4: How do I know if the Venturi throat is worn or coated?
Compare the current DP at a known flow with the commissioning data. If the DP is lower than expected at the same flow and the process density is the same, inspect the Venturi throat. Coating and erosion change the beta ratio and discharge coefficient.
Q5: What information should I send for help with a Global Vision Venturi meter?
Send your pipe size (DN), flow range, pressure (bar), temperature (°C), current transmitter span, and the process liquid or gas details. Silver Automation Instruments will check the sizing and recommend a DP transmitter setting.
