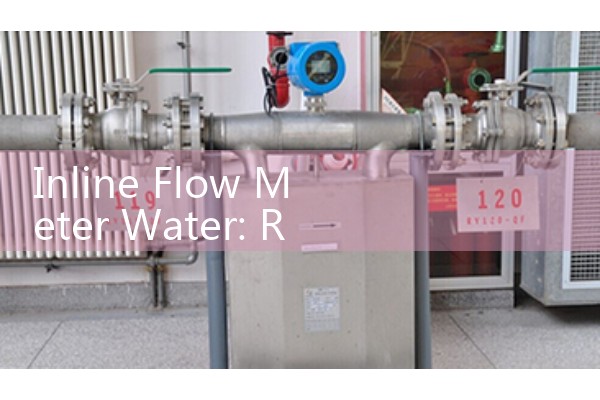

Inline Flow Meter Water: Quick Answers for Residential and Industrial Main Valves
Quick Answer: An inline water flow meter mounted directly on a main valve gives continuous real‑time data without bypass piping. For residential main lines, a compact DN15–DN40 electromagnetic meter with pulse output works best. For industrial mains above DN50, a full‑bore magmeter or an inline ultrasonic meter with 4–20 mA HART and optional ATEX Zone 1 rating provides the accuracy and durability you need.
Why an Inline Meter on the Main Valve Makes Sense
Plant engineers and building managers keep asking us the same thing. They want to see total water consumption right at the supply entry. An inline flow meter installed on the main valve does exactly that. You measure all the water that enters a building, a production line, or a cooling tower. No extra pipe runs. No separate meter pits. The meter sits directly in the flow path, often replacing a spool piece between flanges or threading into the valve body.
We have supplied these setups to a textile factory in Bangladesh, a hospital in Ghana, and a district cooling plant in Saudi Arabia. In each case, the maintenance team needed one reliable number for daily water balance. An inline meter on the main valve gave them that number without complicating the pipework.
Residential Main Valves: Small but Not Simple
Home mains typically run on DN15, DN20, or DN25 copper or PPR pipe. The flow range is small. 0.5 to 2.5 m³/h covers most houses. Pressure is often below 10 bar. Yet the meter matters a lot. A leak detection system or an IoT water management platform depends on accurate low‑flow measurement. We see this in Australian smart‑meter projects and in gated communities in the Philippines.
Here is the thing. Mechanical turbine meters clog after a few years, especially with hard water. We tell residential integrators to skip mechanical and go with a compact electromagnetic flow meter. Silver Instruments offers a battery‑powered magmeter with IP68 enclosure. It threads directly into the main valve outlet. No moving parts. It registers flow as low as 0.01 m/s. Output options include pulse and Modbus RTU, so the signal feeds straight into a remote terminal unit.
Industrial Main Valves: Where We Spend Most of Our Time
Industrial mains are a different story. Pipe sizes range from DN50 to DN600. Water pressure can hit 25 bar or more. Some lines carry chilled water, others carry untreated raw water with silt. A food processing plant in Thailand asked us for a DN100 main valve meter for their washdown makeup line. The water was clean, but the meter had to be CIP‑compatible and give 4‑20 mA HART output to their PLC. We recommended an inline electromagnetic flow meter with PTFE liner and 316L electrodes. The full‑bore design kept the pressure drop negligible, which was important because their pump head margin was tight.
Another case. A copper mine in Zambia needed a DN300 meter on the process water main. The pipe ran partially full during low demand. A regular magmeter would register zero or fault out. So we supplied an inline ultrasonic transit‑time meter from Silver Instruments. It handled low‑conductivity water and kept measuring even at 15 % pipe fill. That meter now sends totalised flow via Modbus TCP to the site control room.
Key Parameters You Will Specify
Most engineers start with pipe size and flow range. You also need to lock down these parameters early. Nominal diameter (DN) we need to match the valve flange or thread standard. Liner and electrode material matter a lot. For potable water, NSF‑approved hard rubber liner and 316L electrodes work well. For reverse osmosis permeate water with very low conductivity, an electromagnetic meter can still function if we select a special low‑conductivity electrode configuration. Process connection is critical. Tri‑clamp, flanged ANSI 150 or PN16, wafer, or threaded BSP / NPT. We see mix‑ups all the time, especially when a UK standard NPT fitting gets ordered for a Middle East site that uses BSP.
Output signal decides how the meter talks to your system. 4–20 mA HART is still the industrial baseline. Pulse output works for totalisation panels. RS‑485 Modbus RTU is growing fast for SCADA and IIoT platforms. Wireless options like NB‑IoT or LoRaWAN are now factory‑fitted on some Silver Instruments models, no external logger required.
Hazardous area classification is easy to miss for water meters because people think water i
_600x400.jpg)
Inline Meter Types We Supply for Main Valves
Silver Instruments stocks three inline meter technologies suitable for water mains.
Electromagnetic flow meters (magmeters). Best for conductive water above 5 µS/cm. No moving parts. Accuracy ±0.5 % of reading. Sizes from DN3 to DN2000. Works on water, wastewater, slurries, and chemical dosing lines. This is the most common choice for residential and industrial main valves.
Inline ultrasonic flow meters. Transit‑time technology. Handles low‑conductivity water, demineralised water, and even some hydrocarbon‑water mixtures. Accuracy ±1 % of reading. Clamp‑on models exist, but for main valves we prefer inline spool‑piece designs because clamp‑on accuracy depends on pipe wall condition. An inline ultrasonic meter gives you a factory‑calibrated measuring section with no field coupling errors.
Vortex flow meters. We supply inlines for steam and condensate lines. For pure water mains, vortex is less common because it needs a minimum Reynolds number and introduces a small permanent pressure drop. However, on large district heating water mains with high flow velocity, a vortex meter can be a cost‑effective alternative.
Installation Advice We Repeat to Every Customer
Mount the meter after the main shut‑off valve, not before. That lets you isolate and service the meter without draining the whole upstream line. Provide straight pipe lengths. For a magmeter, we recommend 5 DN upstream and 2 DN downstream. For an ultrasonic inline meter, 10 DN upstream and 5 DN downstream is safer. In real life, you often cannot get that. We have seen plenty of installations where a control valve sits just 3 DN upstream. We then program a damping filter and accept a slight repeatability trade‑off. Mention these constraints when you send your enquiry. We can advise on site‑specific correction factors.
Also, ensure the meter body stays full at all times. A partially filled pipe kills accuracy on magmeters and most inlines. If your main drains back during off‑cycles, install a check valve downstream or choose a meter with empty‑pipe detection and let the software hold the last valid reading.
What to Send Us for a Concrete Price
Instead of a generic quote request, send us a few hard numbers. Pipe inner diameter or DN. Fluid type and average conductivity if you know it. Flow range minimum, normal, and maximum in m³/h or L/min. Pressure in bar. Temperature in °C. Required output 4–20 mA HART, pulse, Modbus, or wireless. Any hazardous area certificate needed. Main valve connection type and standard. We will return a specific Silver Instruments model recommendation with a budget price within one working day.
FAQ: Inline Flow Meter Water — Residential and Industrial Main Valves
Can I install an inline water flow meter on a vertical main valve?
Yes, vertical installation is acceptable if flow direction is upward. Downward vertical flow risks partial filling. Always ensure the meter remains full.
Do I need a strainer before the inline meter?
For electromagnetic and ultrasonic meters, a strainer is not mandatory but recommended if the water contains large debris or stones. Vortex meters and mechanical meters benefit more from upstream straining.
What is the typical pressure drop across an inline magmeter on a main valve?
Full‑bore magmeters have almost zero pressure drop, same as an equivalent length of straight pipe. Reduced‑bore models create a permanent loss. We provide dP curves for each model on request.
How do you power a residential inline meter on a main valve far from mains electricity?
We offer battery‑powered electromagnetic meters with 3.6 V lithium packs lasting 3 to 5 years, depending on logging interval. For solar sites, a small panel with a charge controller and a 12V DC magmeter works well.
Does Silver Instruments offer commissioning support for main valve flow meters in remote locations?
We support through local channel partners and remote video calls. Our applications team can walk your local electrician through wiring, zero check, and verification using a reference meter or bucket test.
