Rainbird Flow Meter: Commercial Landscape Water Monitoring
Quick Answer
Rainbird flow sensors deliver basic pulse outputs for landscape irrigation controllers. For commercial sites with large pipes, dirty water sources, or strict water reporting needs, a magnetic flow meter from Silver Automation Instruments provides higher accuracy and zero moving parts. Many facility managers in the Middle East and Southeast Asia now pair our magmeters with their existing Rainbird central control systems.
Why Commercial Landscapes Need Accurate Water Monitoring
A hotel complex in Qatar with 20 hectares of gardens noticed a 12 percent jump in its water bill over three months. The maintenance team checked the Rainbird sprinkler run times but found no programming error. A clamp-on ultrasonic meter rented for one week exposed a buried 3-inch lateral leak that had gone unnoticed. In practice, water cost is not the only factor. Overwatering washes fertilizer past the root zone. Underwatering stresses turf and high-value ornamental plants. A simple paddle-wheel sensor inside a Rainbird valve box can tell you that flow exists. It cannot tell you the exact volume per zone when pressure fluctuates or the water is slightly turbid.
Rainbird Flow Sensor Limitations in Real Installations
Rainbird flow sensors like the FS350B are lightweight insertion devices built for clean water. The paddle wheel sits directly in the stream. When a commercial landscape pulls from a pond, canal, or shallow well, silt and fine sand start to wear the shaft. The pulse signal becomes erratic. One maintenance supervisor at a golf course in Thailand showed us a Rainbird sensor he replaced every four months because of silt in the raw water intake. Another limitation is pipe size. Most Rainbird flow sensors work well up to 2 inches. Beyond DN80, you face higher pressure drop and lower reliability. For large main lines from DN100 to DN300, an inline magnetic flow meter with no moving parts solves both the wear and the pressure drop problem overnight.

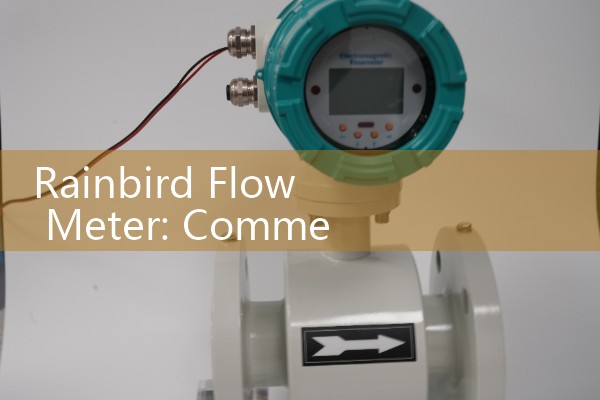

Silver Instruments Magnetic Flow Meter for Landscape Water
Our electromagnetic flow meters measure water from 0.1 m/s to 15 m/s without a single part inside the pipe. The flow tube is straight, full bore, with rubber or PTFE liner and 316L stainless steel electrodes. Install it horizontally or vertically as long as the pipe stays full. A landscape control room in Australia put a Silver Instruments SMF magmeter on a DN150 reclaimed water line in 2021. It has been running 24/7, sending 4-20 mA plus RS485 Modbus data to a central Rainbird IQ4 controller. The true benefit came when they connected the flow totalizer to their BAS. The team now spots excess flow from broken heads or valve issues before the turf turns brown. Because the magmeter measures volume flow independently of pressure and temperature swings, the data is consistent season after season. Rainbird pulse sensors often drift by a few percent when the irrigation pump starts or when two zones run at once with different supply pressures. A magmeter holds 0.5 percent accuracy across the entire range, from minimum night-time base flow to peak morning demand.
Sizing Your Flow Meter for Commercial Sites
Start with the pipe outside diameter and wall thickness to get the internal DN. For a DN100 schedule 40 steel pipe, the inner diameter is roughly 102 mm. The magmeter size matches the pipe directly, so order a DN100 magnetic flow meter. No reducer is needed. If you already have Rainbird valves and a decoder system, y
Electrical and Network Integration
Most commercial landscapes already run 24 VAC field wiring for Rainbird solenoids. A magnetic flow meter from Silver Instruments accepts 24 VDC, 220 VAC, or battery power with a solar panel. The pulse output can mimic the Rainbird dry contact signal for direct replacement of worn-out insertion sensors. In a recent project in Mexico City, a landscaping contractor replaced 18 Rainbird FS400B sensors with our SMF magmeters on DN50 and DN80 lines. The head-end Rainbird SiteControl decoder accepted the scaled pulse output without any extra interface. The irrigation schedule stayed untouched. Only the flow accuracy improved enough that the water agency audit accepted the meter data for billing credits.
FAQ
Can I use a Rainbird flow meter with dirty water?
Rainbird paddle wheel sensors need clean filtered water. Sand, silt, or organic debris can jam the rotor and stop the pulse signal. For pond or canal water, a full-bore magnetic flow meter is a better fit.
What output does a Rainbird flow sensor provide?
Most Rainbird flow meters output a dry contact pulse, typically 1 pulse per gallon or per liter. Some models offer a 4-20 mA signal with an adapter. Check the sensor data sheet for the K-factor and offset.
Which flow meter works best on a large landscape main line?
For main lines from DN80 to DN300, an inline electromagnetic flow meter gives stable readings and zero pressure loss. Silver Instruments SMF series covers all common irrigation pipe sizes and liners.
How do I connect a magnetic flow meter to a Rainbird central controller?
Use the scaled pulse output from the magmeter converter. Set the K-factor to match your unit of volume, then wire the pulse terminal to the flow sensor input on the Rainbird controller. The controller reads it as a standard Rainbird pulse sensor.
What maintenance does a magnetic flow meter need in landscape use?
Almost none. No moving parts touch the water. Occasionally check the grounding ring and clean the electrode face if the water source leaves an organic coating. Empty pipe detection prevents dry-run measurement errors.
Get a Quote for Your Landscape Flow Meter
Tell us your pipe size (DN), water source, pressure in bar, temperature in °C, and required flow range. You will get a specific model recommendation and price within one working day. Email [email protected] or send the same data on WhatsApp at 86-135-12131526. For phone calls, dial +86-135-1213-1526. WeChat users can reach us at +86 13512131526. Silver Automation Instruments ships magnetic flow meters, ultrasonic meters, and pressure transmitters to commercial landscape projects across Southeast Asia, the Middle East, Africa, Latin America, and Oceania.
